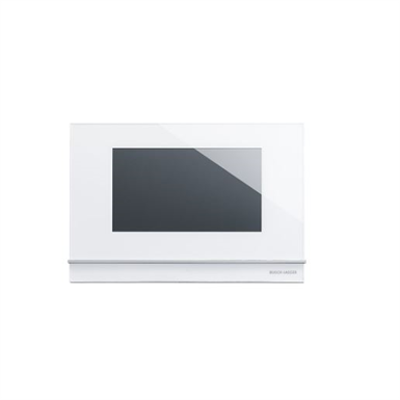

Busch-SmartTouch

Functions at a glance
Free programmable KNX touch display as room-integrated controlling, signalling and regulating unit.
To be used as indoor video station for the ABB-Welcome door communication system.
For the illustration and operation of the following KNX standard functions: - Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element
With scene function, logic functions, presence simulation and time programs.
Functions: - 480 KNX control elements - Audio control elements - RGB control elements - maximum 30 sides - 80 fault and alarm messages - 30 logic functions - 30 timer - presence simulation for 20 participants - 10 scene actuators - 1 object RTC
Equipped with a hearing loop for coupling the audio signal into hearing aids.
Page display with a maximum of 16 touch surfaces on one page.
External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller.
Consumer units: 15
Control element: freely programmable touch surfaces
Display elements: Capacitive touchdisplay 1024 x 600 pixel
Rated voltage: 20 V-32 V-
Protection class (device): IP 20
Temperature range (device): 0 °C - 45 °C
Storage temperature range: -20 °C - 60 °C
Transport temperature range: -20 °C - 60 °C
Dimensions: (L x W x D): 165 mm x 246 mm x 25 mm
Mounting depth: 15 mm
Position for installation: Horizontal
Mounting height: 150 cm
For software and description please check the current Online-Catalogue.
Additional Power-Tool software necessary.

Erittely
Product family: Visualisation, Display and Signalling	Product group: SmartTouch
Publishing date: 21.10.2020	Technical description
